S M OpticalsSpectacle Frame Manufacturer · India Engineered for structural balance, aesthetic sharpness, and seamless Rx lens glazing across international optical markets.
The global eyewear landscape has transitioned from simple visual correction toward high-performance medical devices integrated with architectural design principles. As China's premier square optical frame manufacturer and high-capacity exporter, our manufacturing infrastructure fuses five-axis CNC computer numerical control profiling, German-engineered OBE/Comotec hinge integration, multi-stage rotary barrel tumbling, and vacuum cathodic ion plating (IP). Square optical frames represent over 42% of global prescription frame volume due to their structural versatility, accommodating multifocal progressive additions, high-minus astigmatic lens bevels, and modern blue-light filtering plano lenses without optical distortion.
Sourcing ophthalmic square frames requires strict compliance with international biomedical and mechanical standards, including ISO 12870:2016 (Ophthalmic optics — Spectacle frames), FDA 21 CFR 801.410 drop ball impact testing, and EU REACH Regulation (EC) No 1907/2006 for nickel release and cytotoxicity thresholds. Our automated production clusters operate in verified compliance with ISO 9001 quality management regimens, delivering complete supply chain visibility from raw cellulose flake dissolution to cold-cured acetate plank cutting and robot-guided stainless steel micro-welding.
By leveraging vertical integration across tool fabrication, custom color formulation, injection molding, CNC acetate routing, and cleanroom assembly, our facility eliminates intermediary markups while maintaining stringent quality control tolerances within ±0.05 mm across bridge dimensions, lens groove depths, and pantoscopic tilt angles.
Choosing the correct structural substrate for square optical frames depends directly on the demographic profile, glazing laboratory requirements, and target retail tier of the distributor. Square frame silhouettes inherently concentrate higher shear tension at the four 90-degree internal lens groove corners compared to round or oval geometries. Sub-standard polymers or improperly tempered metals suffer frame stress cracking or eyewire deformation during cold snap-in glazing or thermal lens insertion.
| Material Category | Tensile Strength & Density | Rx Glazing Compatibility | Key Performance Characteristics | Primary Commercial Use Cases |
|---|---|---|---|---|
| Cured High-Density Acetate (Mazzucchelli Style) | 1.28 - 1.32 g/cm³ Tensile: ~55 MPa |
Excellent for high-index (-) lenses; deep bevel hiding | Organic tactile feel, thermo-adjustable bridge and temples, ultra-deep color luster achieved via 72-hour pumice tumbling. | Designer prescription collections, luxury heritage optical lines, high-margin retail boutiques. |
| Medical Grade TR-90 (Grilamid EMS) | 1.01 - 1.04 g/cm³ Tensile: ~85 MPa |
Superb flexibility; cold snap-in or gentle heating | Memory polymer, virtually unbreakable under torsional strain, hypoallergenic, resistant to sweat and cosmetics. | Pediatric eyewear, athletic cross-over frames, budget-friendly high-volume retail chains. |
| Corrosion-Proof Stainless Steel (AISI 304/316L) | 7.93 g/cm³ Yield: >205 MPa |
Screw-closure eyewires for exact circumferential tension | Ultralight profile down to 0.7mm rim thickness, high rigidity preventing lens pop-out, vacuum IP electroplating longevity. | Minimalist business square spectacles, lightweight office eyewear, unisex professional series. |
| Japanese Beta-Titanium Alloys | 4.50 g/cm³ Elastic Modulus: 105 GPa |
Precision micro-lock blocks; zero creeping | Extreme spring recovery, featherweight construction (< 8 grams), 100% bio-compatible for severe nickel allergies. | Flagship executive optical frames, ultra-premium optical doctor practices, bespoke collections. |

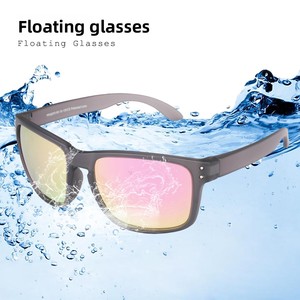

| TPX Polymethylpentene Polymer | 0.83 g/cm³ (Floats on water) |
Specialized polarized plano and moderate Rx | Lower density than water, exceptional acoustic clarity, thermal endurance up to 150°C, zero water absorption. | Marine sports eyewear, fishing sunglasses, heavy-sweat outdoor tactical frames. |
For high-minus lens prescriptions (-4.00D to -10.00D), we strongly recommend our High-Density Acetate Block CNC Routed Frames. The natural thickness of the rim wall (ranging from 3.8mm to 4.8mm) completely masks heavy peripheral edge thickness while eliminating the visual ring effect common in metal rim wire designs.
Commercial procurement directors and category managers in North America, Europe, and the Asia-Pacific region are currently navigating radical structural shifts across consumer expectations. Sourcing decisions now hinge on life-cycle sustainability, smart component modularity, and ergonomic universal geometries.
Global demand is rapidly phasing out diethyl phthalate (DEP) plasticizers in favor of plant-derived triethyl citrate formulations. Our bio-acetate collections achieve ISO 14855 industrial compostability standards while retaining the identical dimensional stability and polishing gloss of traditional virgin acetate.
Square frames provide the ideal frontal geometric equilibrium for smart audio spectacles and heads-up display modules. Our engineering workshop produces precision hollowed-out acetate and injection-molded temples engineered with internal water-resistant micro-cavities for battery integration and capacitive touch strips.
Gone are the days of single-market bridge profiles. Utilizing aggregated cranial 3D scanning datasets, our square frame bridges are manufactured with variable splay angles (28° to 34°) and progressive apical radius curvatures that fit both low-bridge East Asian facial contours and higher Caucasian nasal crests without bridge slipping.
Unlike standard trading intermediaries, our integrated manufacturing base provides end-to-end industrial reliability. Every production lot destined for export undergoes rigorous multi-step analytical and destructive testing at our in-house optical testing laboratory.
Spring and barrel hinges endure mechanized open-close cycling under calibrated resistance to ensure zero screw looseness or temple sagging.
Continuous 48-hour exposure to acid perspiration testing (pH 4.7) guarantees anti-tarnish IP galvanic plating integrity without peeling or blistering.
We provide full technical documentation including CE Declarations of Conformity, FDA US Device Listings, and full SVHC candidate substance audits.
Support for tiered minimum orders starting from 300 units per model across multi-color skus, accommodating fast replenishment cycles for chain retailers.
Comprehensive answers compiled by our international trade and optical engineering division to facilitate rapid vendor qualification and purchase order issuance.
For ready-to-ship catalog frames, our MOQ is 100 units per model with mixed color assortments allowed. For custom OEM/ODM production involving custom acetate laminate extrusion or proprietary injection tooling, our standard MOQ is 300 to 500 units per style (minimum 100 units per colorway). We also offer rapid 3D prototyping and CNC master sample production within 7 to 10 working days prior to mold tooling commitment.
Square optical frames demand exacting bevel groove milling to prevent cold flow distortion and lens popping. We employ 5-axis Japanese CNC routing machines that cut the internal 110°/115° standard V-bevel grooves with a repeatable tolerance of ±0.03 mm. Frame fronts undergo three-dimensional optical comparator verification against the original CAD file before ultrasonic cleaning and temple assembly.
Every commercial consignment is accompanied by formal documentation complying with destination customs: ISO 12870:2016 conformity test records, European CE technical documentation (Regulation (EU) 2017/745 MDR Class I Medical Devices), US FDA registration and drop ball impact test certificates under 21 CFR 801.410, and REACH SVHC chemical safety clearances confirming zero cadmium, lead, or prohibited nickel release.
Yes. We offer extensive private-label branding capabilities: high-definition laser engraving, diamond-cut temple metallic inlays, pad-printed inner-temple regulatory inscriptions, custom filigree wire core hydro-transfer patterns, and branded packaging systems including recycled PET clamshell cases, microfiber cleaning cloths, and FSC-certified outer retail gift boxes.
Standard lead times for new OEM mold runs are 40 to 55 days from CAD approval and deposit confirmation. Repeat orders typically ship within 30 to 35 days. We support flexible incoterms including FOB Shenzhen/Hong Kong/Ningbo, CIF major seaports, and DAP express airfreight via DHL/FedEx/UPS for urgent replenishment. Payment structures include standard T/T with 30% deposit and balance against Bill of Lading, or Irrevocable Letters of Credit (L/C at sight) for high-volume enterprise contracts.
Whether you are expanding a chain retail optical collection, launching an e-commerce direct-to-consumer eyewear brand, or sourcing certified medical-grade spectacle frames in volume, our engineering team is ready to assist your procurement roadmap.
